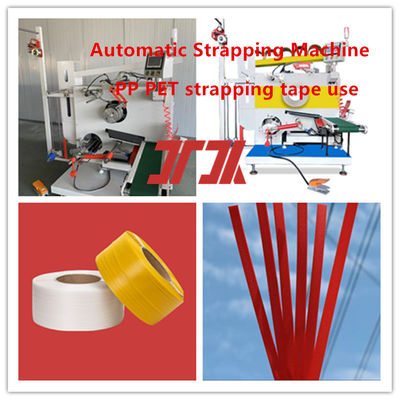

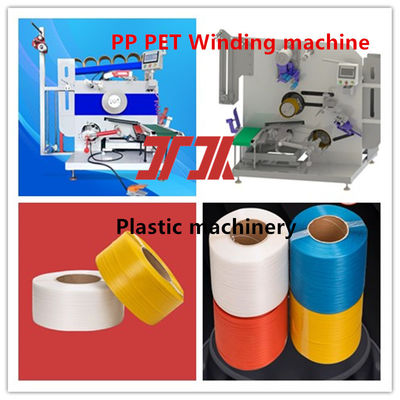

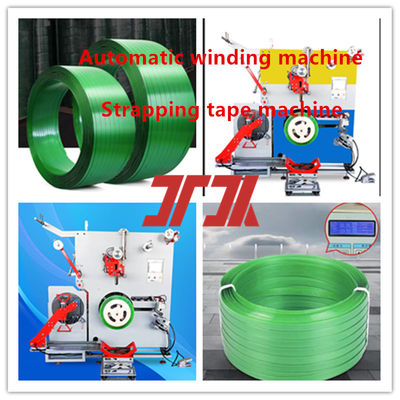

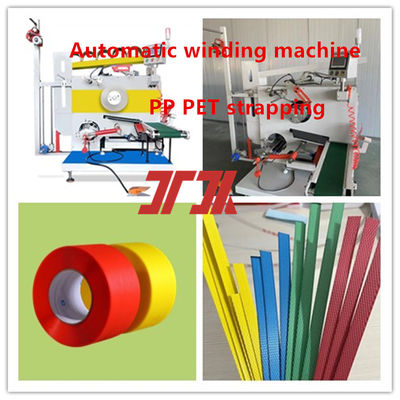

5-19mm PP PET automatic winding machine Servo motor winding machine PP PET strapping special winding machine
Product Description of Automatic strapping machine:
Automatic wrapping machine is suitable for: PP/PET strapping wrapping
The main functions of the automatic winder:
- The automatic winder uses a servo motor to arrange the wires, which is suitable for winding PP strapping band with a width of 5-19mm. The corresponding bandwidth is selected through the PLC touch screen for winding and winding. The whole process does not require manual replacement of the transmission gear and belt slot.
- After the whole roll of strapping tape is wound, the machine automatically stops, automatically replaces the paper tube, automatically cuts the strapping tape, fixes the strapping tape head with a clip, and automatically changes the roll for winding. The whole process is completed automatically.
- The rewinding axis uses the torque mode control of the servo motor. The torque during winding can be set and debugged through the PLC touch screen, so that strapping tapes of different weights or widths can be wound with appropriate torque, and the bending deformation of the strapping tape after winding can be minimized.
Line speed: 200-300 m/min
| Name |
Automatic Winding Machine |
| Tape width |
5-19mm |
| Thickness |
0.4-1.2mm |
| Control mode |
servo motor |
| Pressure |
4-7kgf |
| PLC control |
YES |
| Paper tube |
Ø200*180/190mm |
| Max weight |
10kg/roll |
| power single-phase |
220V |
| Weight |
650KG |
| Overall dimension |
(L)1900mm*(W)1850mm*(H) 1800mm |
Advantages of PET PP automatic winding machine:
1. Different specifications of PET plastic steel belts can be selected for winding according to customer needs.
2. No need to change gears, the whole process is operated by buttons on the PLC touch screen.
3. The winding is neat and the reel is flat.
4. It can support meter & weight, two modes, which can be switched at will.
5. No manual operation, saving labor.
6. The speed can reach 220-300 meters/minute.
7. Different languages can be customized according to customer requirements, and multiple languages are supported.
8. Increase production capacity by more than 30%.
Services:
After-sales service:
The automatic winding machine provides comprehensive technical support and services. Our experienced team of technicians can provide a variety of services, including:
Pre-sales:
1. Layout diagram.
2. Labor cost analysis.
After-sales service:
1. Water and electricity lines, circuit diagrams, etc. of the automatic winding machine.
2. Installation, commissioning and training of the automatic winding machine.
3. Maintenance service of the P automatic winding machine.
4. Regular maintenance and repair
4. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FQA:
Q: Where is the automatic winding machine made?
A: China
Q: What is the voltage of the automatic winding machine?
A: 220V
Q: What mode is the automatic winding machine controlled by?
A: Servo motor control
Q: Can the automatic winding machine be purchased separately?
A: Yes
Q: Does the automatic winding machine require manual operation?
A: No, the entire process is controlled by PLC computerization.
