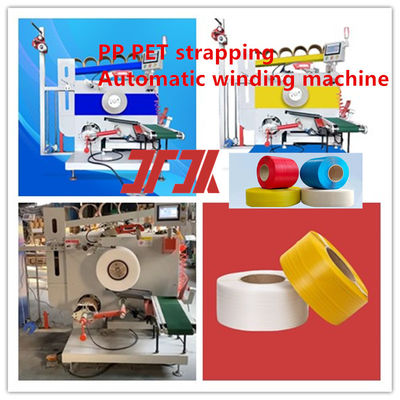

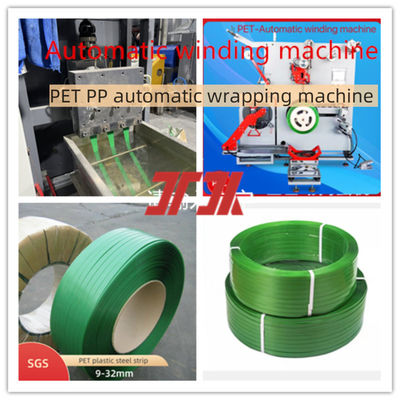

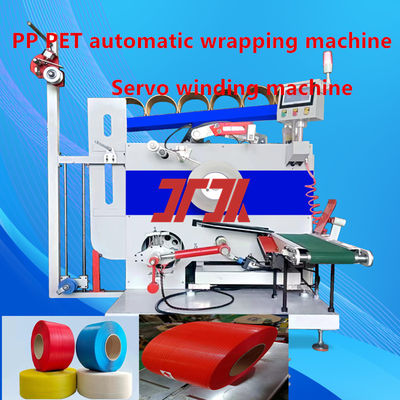

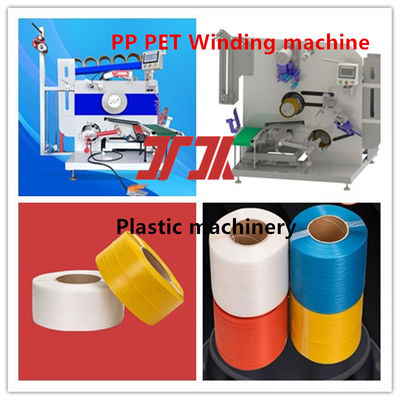

5-19mm PP PET strapping automatic winding machine servo winding machine automatic packaging machinery
Product Description of Automatic strapping machine:
The main functions of the automatic winder:
Automatic winding machine, servo winding machine, is a wire machine for PP PET STRAPPING BAND, winding the whole body, the winding layer is flat
After the automatic winding machine completes the winding, the strapping tape is automatically moved to the storage conveyor. The conveyor can hold about 3 rolls of strapping tape, and the conveyor belt can be lengthened according to customer needs. During the whole process, the PP strapping band is wound and arranged without loosening or deformation.
Extrusion output
| Name |
PP PET Automatic Winding Machine |
| Tape width |
5-19mm |
| Thickness |
0.6-1.2mm |
| Control mode |
servo motor |
| Pressure |
4-7kgf |
| PLC control |
YES |
| Paper tube |
Ø200*190mm |
| Max weight |
20-350kg/roll |
| power single-phase |
220V |
| Weight |
700KG |
| Overall dimension |
(L)1400mm*(W)1200mm*(H) 1850mm |
PP STRAP WINDER DUAL-SERVO MOTOR
AUTOMATICALLY STOP THE WINDER
PP STRAP WINDER DUAL-SERVO MOTOR
PP PET AUTOMATIC WINDING MACHINE
Features of Automatic strapping machine:
Automatic operation----Automatic winding, automatic tape cutting, automatic roll changing, with simple settings, the equipment can automatically complete packaging, reducing manual intervention.
Intelligent control----equipped with PLC and touch screen, easy to operate, adjustable parameters, one-button operation.
High efficiency and energy saving----fast speed, 200-300 m/min, improve efficiency.
Energy-saving design----using energy-saving motors and frequency conversion technology to reduce energy consumption.
Shipping Packaging:
1.This PP PET automatic winding machine will pass strict inspection before leaving the factory, and field winding test.
2. This PP PET automatic winding machine will be packaged with PE soft film before leaving the factory, and then put into the wooden box for fixed packaging to ensure safe delivery.
3. This PP PET automatic winding machine will be delivered safely by sea transportation.
Services:
After-sales service:
The automatic winding machine provides comprehensive technical support and services. Our experienced team of technicians can provide a variety of services, including:
Pre-sales:
1. Layout diagram.
2. Labor cost analysis.
After-sales service:
1. Water and electricity lines, circuit diagrams, etc. of the automatic winding machine.
2. Installation, commissioning and training of the automatic winding machine.
3. Maintenance service of the P automatic winding machine.
4. Regular maintenance and repair
4. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
- Q1: What is the brand name of the Strapping Band Winding Machine?
- A1: The brand name of the Strapping Band Winding Machine is Automatic PP packing and winding machine.
- Q2: What is the model number of the Strapping Band Winding Machine?
- A2: The model number of the Strapping Band Winding Machine is JTPP/PET.
- Q3: What is the place of origin of the Strapping Band Winding Machine?
- A3: The place of origin of the Strapping Band Winding Machine is CHINA.
- Q4: What is the purpose of the Strapping Band Winding Machine?
- A4: The Strapping Band Winding Machine is used to automatically wind PP strapping bands.
- Q5: Does the Strapping Band Winding Machine have any special features?
- A5: Yes, the Strapping Band Winding Machine can automatically count the number of winding layers, and it is equipped with a touch screen for easy operation.
